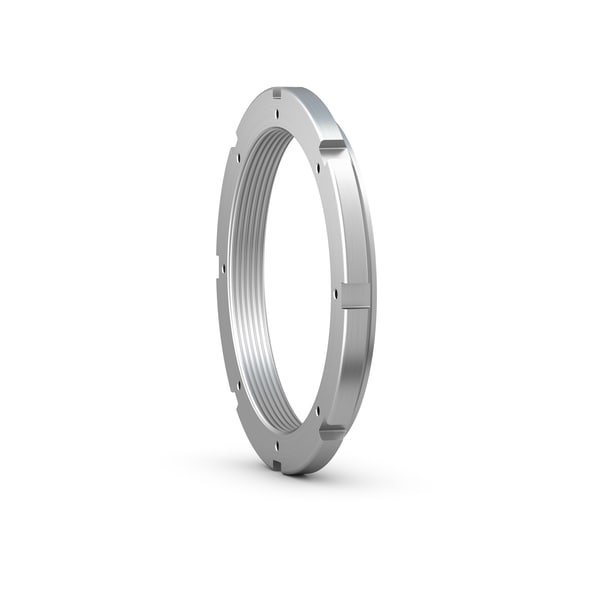

SKF HME 3048
Lock nut
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 240x4
Thread
d3
290.0 mm
Outside diameter
B
34.0 mm
Width
d1
264.0 mm
Diameter locating side face
d2
253.0 mm
Pitch diameter threaded holes for locking clip
B3
8.0 mm
Stand-out of locating face
B5
46.0 mm
Width including locking clip
b
20.0 mm
Width locating slot
h
10.0 mm
Depth locating slot
mass
4.49 kg
Product net weight
