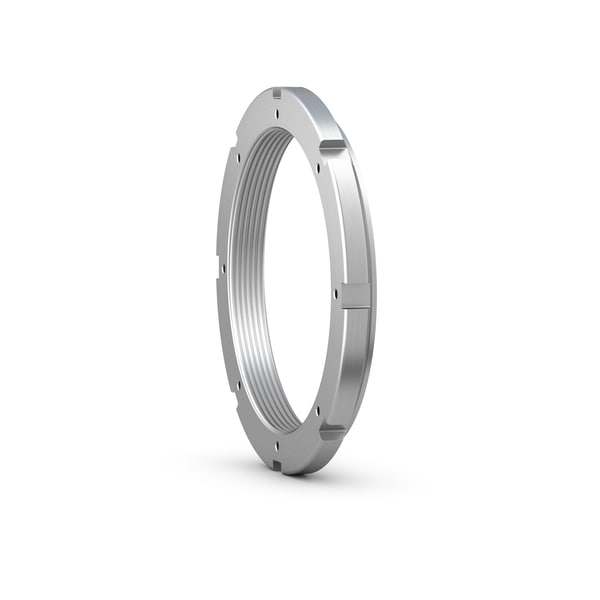

SKF HME 3084
Lock nut
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
Tr 420x5
Thread
d3
490.0 mm
Outside diameter
B
52.0 mm
Width
d1
462.0 mm
Diameter locating side face
d2
439.0 mm
Pitch diameter threaded holes for locking clip
B3
10.0 mm
Stand-out of locating face
B5
66.0 mm
Width including locking clip
b
32.0 mm
Width locating slot
h
14.0 mm
Depth locating slot
mass
18.4 kg
Product net weight
