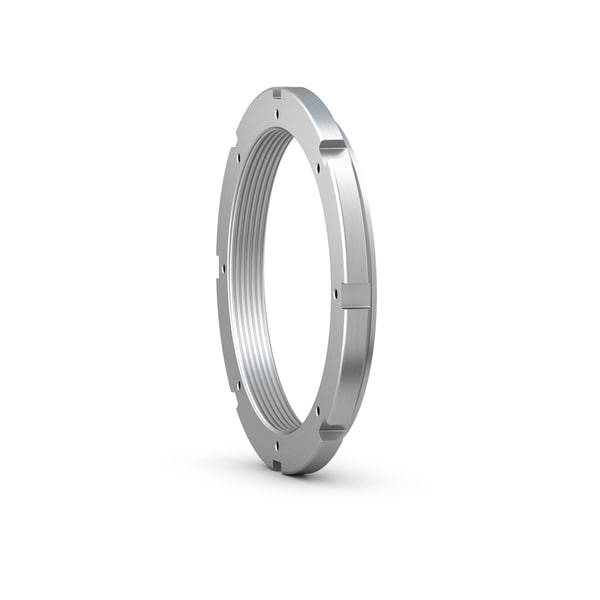

SKF HME 3192
Lock nut
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 460x5
Thread
d3
580.0 mm
Outside diameter
B
75.0 mm
Width
d1
535.0 mm
Diameter locating side face
d2
498.0 mm
Pitch diameter threaded holes for locking clip
B3
20.0 mm
Stand-out of locating face
B5
95.0 mm
Width including locking clip
b
36.0 mm
Width locating slot
h
20.0 mm
Depth locating slot
mass
49.0 kg
Product net weight
