SKF KDN.JA055XP0

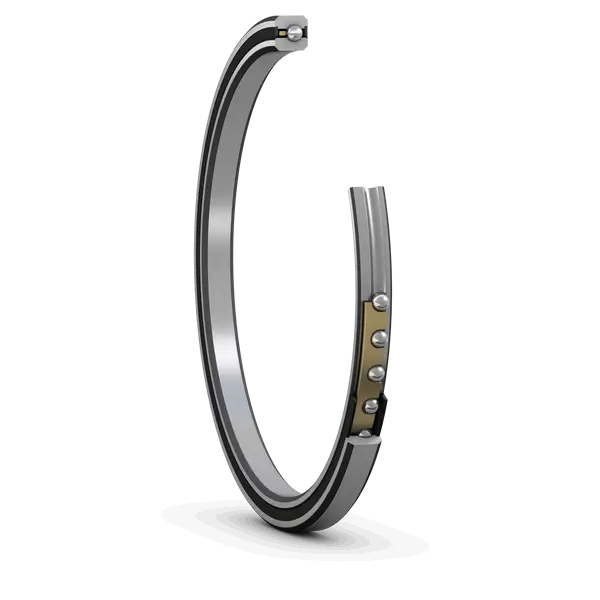

Reali-Slim thin section four-point contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
139.7 mm
Bore diameter
D
152.4 mm
Outside diameter
H
6.35 mm
Radial cross section
B
6.35 mm
Width
d1
144.424 mm
Shoulder diameter inner ring
d2
143.459 mm
Recess diameter inner ring
D1
147.676 mm
Shoulder diameter outer ring
D2
148.742 mm
Recess diameter outer ring
mass
0.25 kg
Product net weight
