SKF KDN.KC250AR0

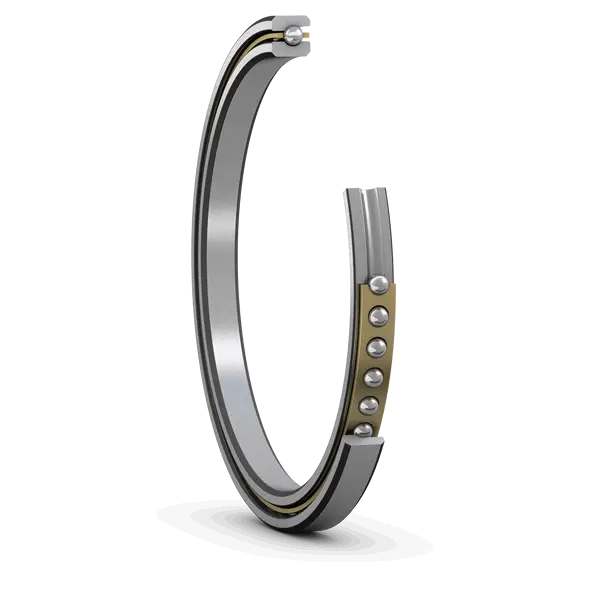

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
635.0 mm
Bore diameter
D
654.05 mm
Outside diameter
H
9.525 mm
Radial cross section
B
9.525 mm
Width
d1
642.036 mm
Shoulder diameter inner ring
D1
647.014 mm
Shoulder diameter outer ring
D4
647.7 mm
Shoulder diameter outer ring
mass
1.14 kg
Product net weight
