SKF KDN.SA030AR0

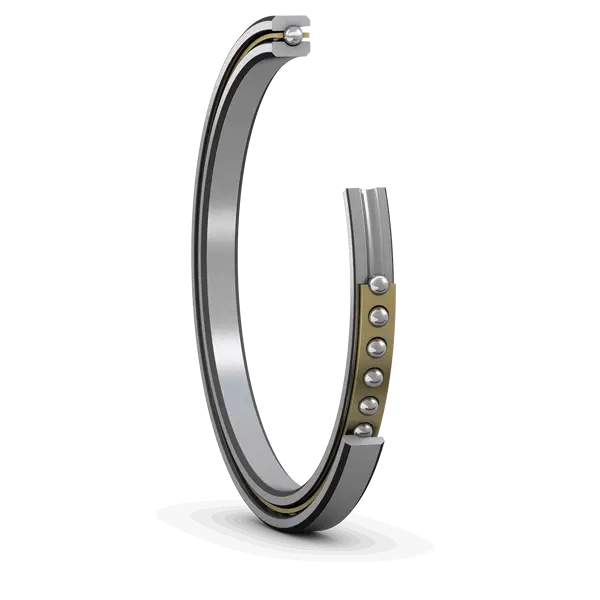

Reali-Slim thin section angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
76.2 mm
Bore diameter
D
88.9 mm
Outside diameter
H
6.35 mm
Radial cross section
B
6.35 mm
Width
d1
80.924 mm
Shoulder diameter inner ring
D1
84.176 mm
Shoulder diameter outer ring
D4
85.522 mm
Shoulder diameter outer ring
mass
0.07 kg
Product net weight
