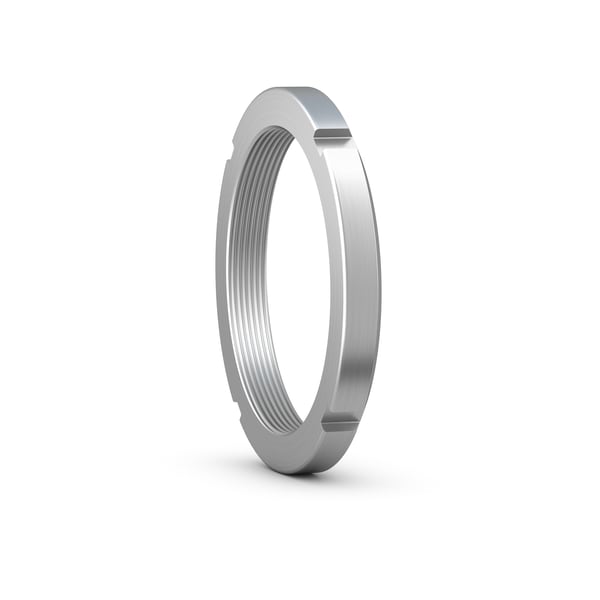

SKF KM 15
Lock nut with metric thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M75x2
Thread
d3
98.0 mm
Outside diameter
B
13.0 mm
Width
d1
90.0 mm
Diameter locating side face
b
8.0 mm
Width locating slot
h
3.5 mm
Depth locating slot
mass
0.292 kg
Product net weight
