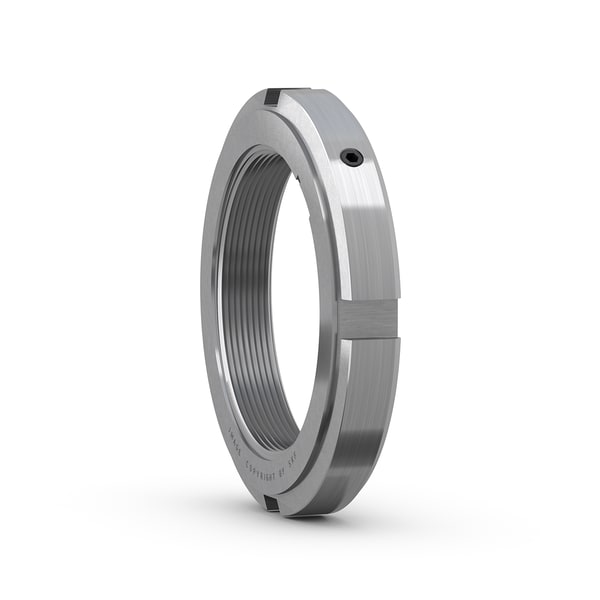

SKF KMFE 12
Lock nut with metric thread, with locking screw
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M60x2
Thread
d3
80.0 mm
Outside diameter
B
14.0 mm
Width
d1
69.0 mm
Diameter locating side face
B3
3.0 mm
Stand-out of locating face
b
7.0 mm
Width locating slot
h
3.0 mm
Depth locating slot
mass
0.19 kg
Product net weight
