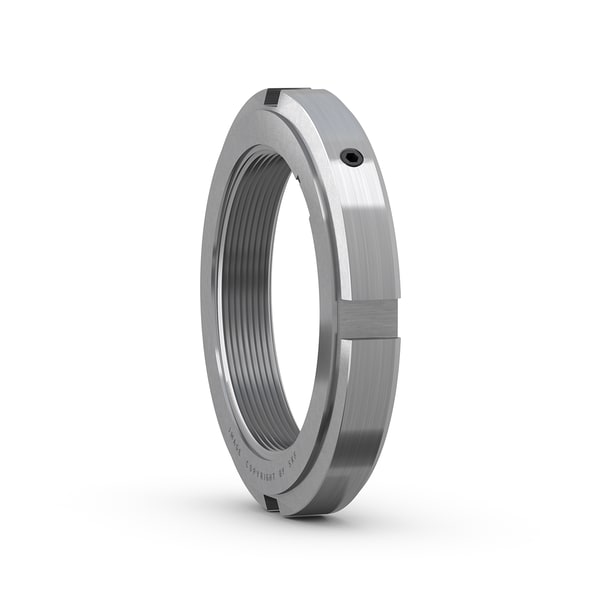

SKF KMFE 13
Lock nut with metric thread, with locking screw
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M65x2
Thread
d3
85.0 mm
Outside diameter
B
15.0 mm
Width
d1
76.0 mm
Diameter locating side face
B3
3.0 mm
Stand-out of locating face
b
7.0 mm
Width locating slot
h
3.0 mm
Depth locating slot
mass
0.23 kg
Product net weight
