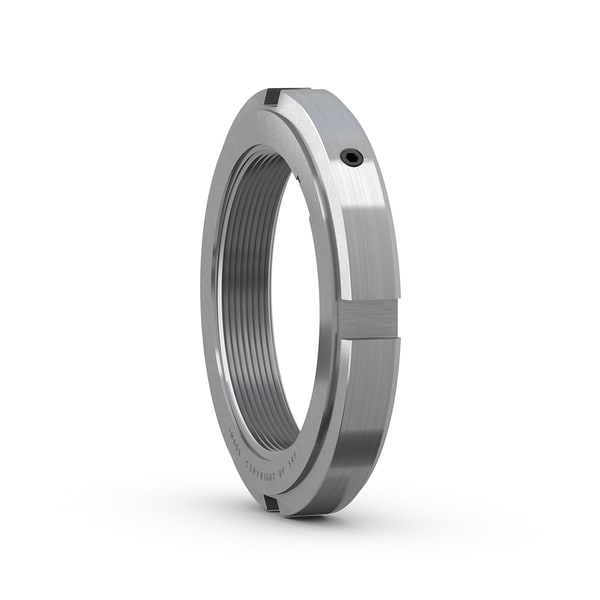

SKF KMFE 18
Lock nut with metric thread, with locking screw
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M90x2
Thread
d3
120.0 mm
Outside diameter
B
19.0 mm
Width
d1
102.0 mm
Diameter locating side face
B3
4.0 mm
Stand-out of locating face
b
10.0 mm
Width locating slot
h
4.0 mm
Depth locating slot
mass
0.58 kg
Product net weight
