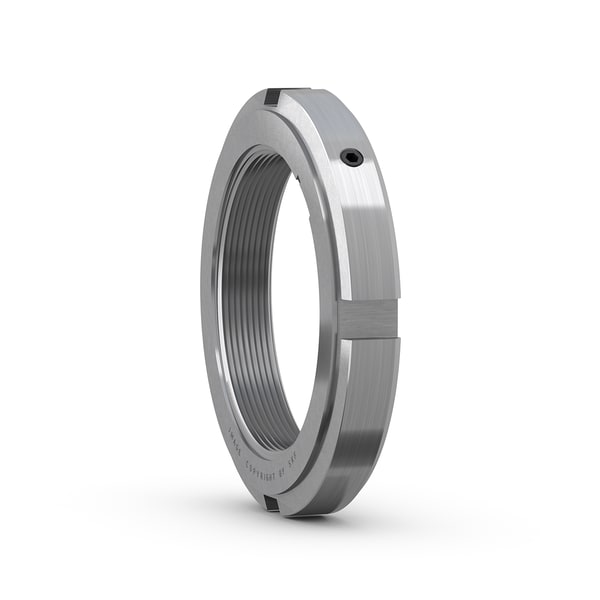

SKF KMFE 36
Lock nut with metric thread, with locking screw
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M180x3
Thread
d3
230.0 mm
Outside diameter
B
34.0 mm
Width
d1
194.0 mm
Diameter locating side face
B3
12.0 mm
Stand-out of locating face
b
18.0 mm
Width locating slot
h
8.0 mm
Depth locating slot
mass
3.29 kg
Product net weight
