KMFE 40

MORE +

CLOSE +

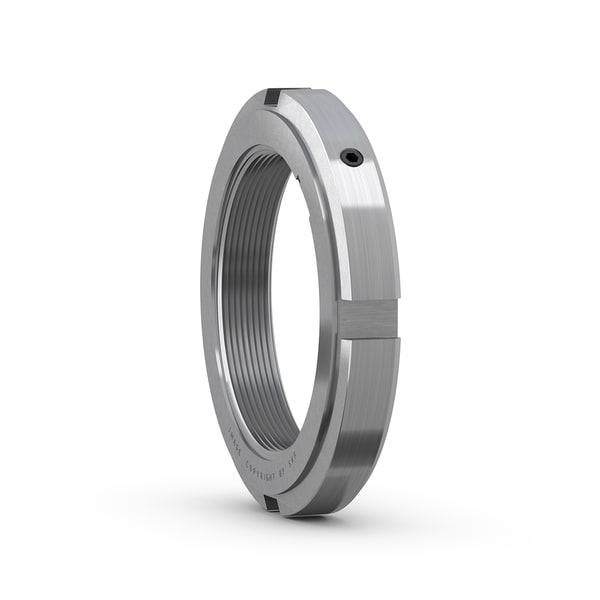

SKF KMFE 40

Lock nuts and locking devices

Lock nut with metric thread, with locking screw

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

KMFE 40

Lock nuts and locking devices

Dimensions

G M200x3 Thread

d₃ 250.0 mm Outside diameter

B 34.0 mm Width

d₁ 217.0 mm Diameter locating side face

B₃ 12.0 mm Stand-out of locating face

b 18.0 mm Width locating slot

h 8.0 mm Depth locating slot

mass 3.3 kg Product net weight
