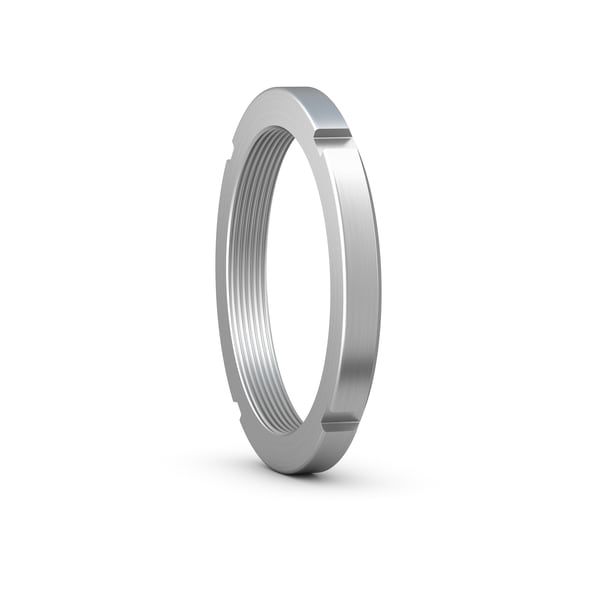

SKF KML 24
Lock nut with metric thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M120x2
Thread
d3
145.0 mm
Outside diameter
B
20.0 mm
Width
d1
135.0 mm
Diameter locating side face
b
12.0 mm
Width locating slot
h
5.0 mm
Depth locating slot
mass
0.684 kg
Product net weight
