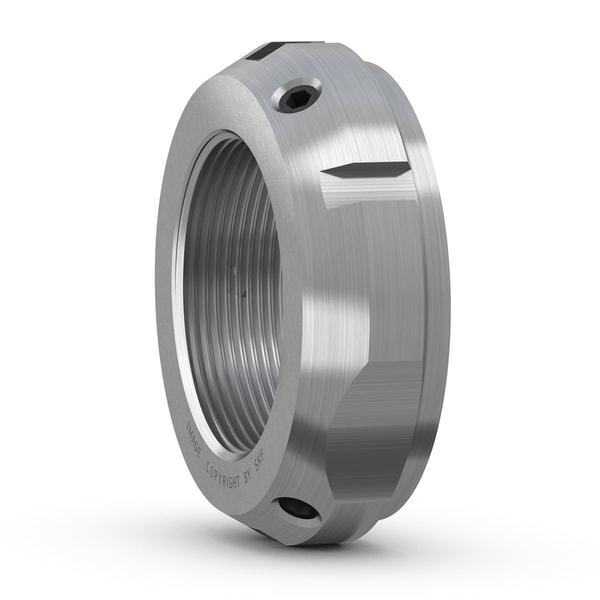

SKF KMT 16

Lock nuts and locking devices

Precision lock nut with locking pins

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

KMT 16

Lock nuts and locking devices

Dimensions

G M 80x2 Thread

d₁ 100.0 mm Outside diameter locating side face

B 32.0 mm Width

d₃ 110.0 mm Outside diameter

d₄ 82.0 mm Inner diameter locating side face

d₅ 98.0 mm Diameter side face opposite to bearing

b 8.0 mm Width locating slot

h 3.5 mm Depth locating slot

mass 0.91 kg Product net weight
