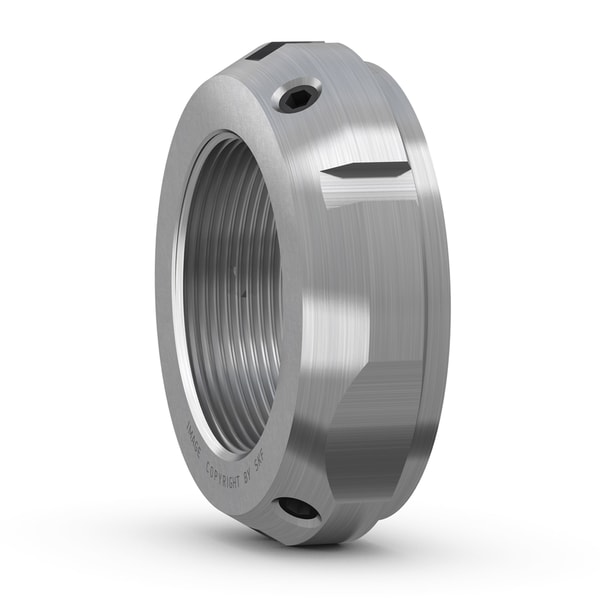

SKF KMT 18
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 90x2
Thread
d1
115.0 mm
Outside diameter locating side face
B
32.0 mm
Width
d3
125.0 mm
Outside diameter
d4
92.0 mm
Inner diameter locating side face
d5
112.0 mm
Diameter side face opposite to bearing
b
10.0 mm
Width locating slot
h
4.0 mm
Depth locating slot
mass
1.22 kg
Product net weight
