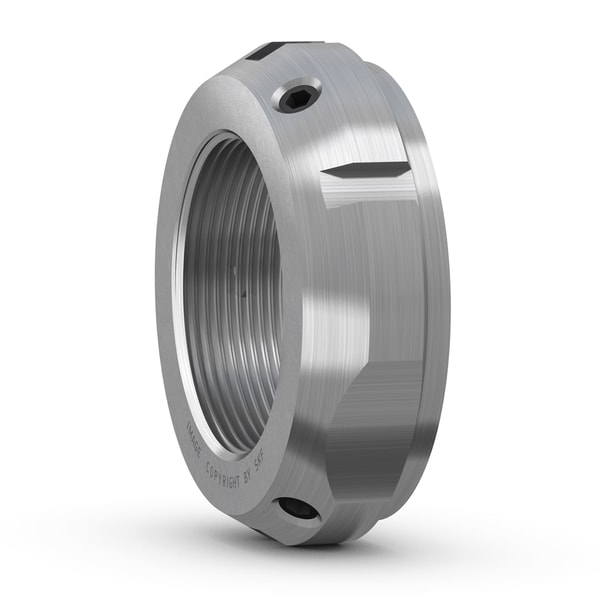

SKF KMT 40
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 200x3
Thread
d1
224.0 mm
Outside diameter locating side face
B
32.0 mm
Width
d3
235.0 mm
Outside diameter
d4
202.0 mm
Inner diameter locating side face
d5
222.0 mm
Diameter side face opposite to bearing
b
18.0 mm
Width locating slot
h
5.0 mm
Depth locating slot
mass
2.63 kg
Product net weight
