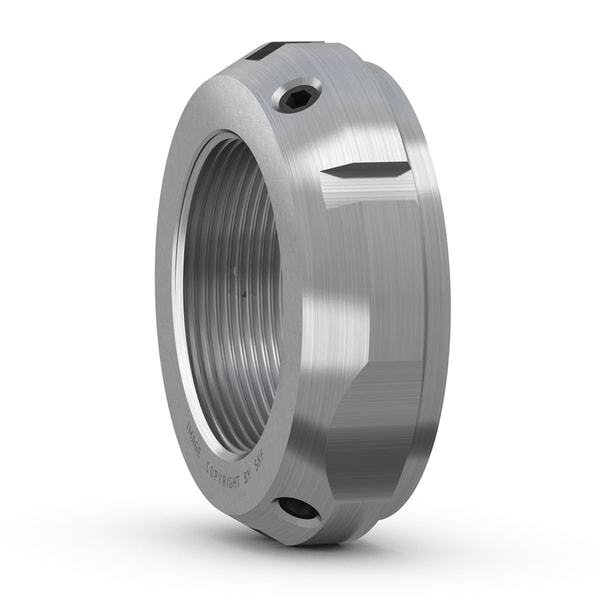

SKF KMT 6
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 30x1.5
Thread
d1
44.0 mm
Outside diameter locating side face
B
20.0 mm
Width
d3
49.0 mm
Outside diameter
d4
32.0 mm
Inner diameter locating side face
d5
41.0 mm
Diameter side face opposite to bearing
M
46.0 mm
Width flat spanner
b
5.0 mm
Width locating slot
h
2.0 mm
Depth locating slot
mass
0.153 kg
Product net weight
