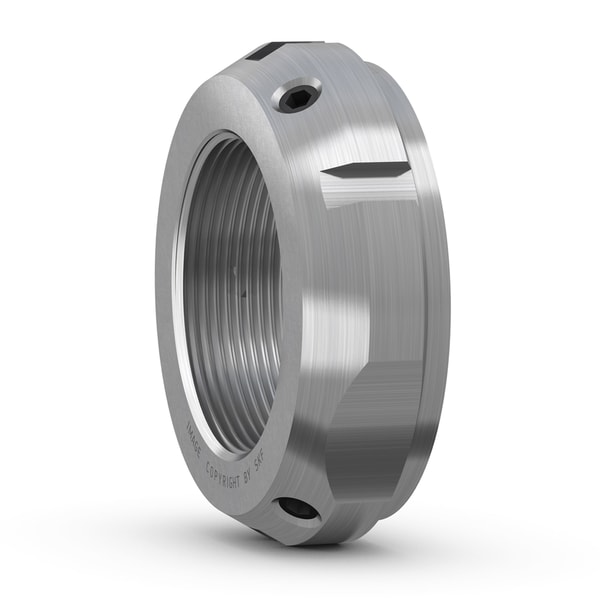

SKF KMT 8
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 40x1.5
Thread
d1
59.0 mm
Outside diameter locating side face
B
22.0 mm
Width
d3
65.0 mm
Outside diameter
d4
42.0 mm
Inner diameter locating side face
d5
54.0 mm
Diameter side face opposite to bearing
M
60.0 mm
Width flat spanner
b
6.0 mm
Width locating slot
h
2.5 mm
Depth locating slot
mass
0.279 kg
Product net weight
