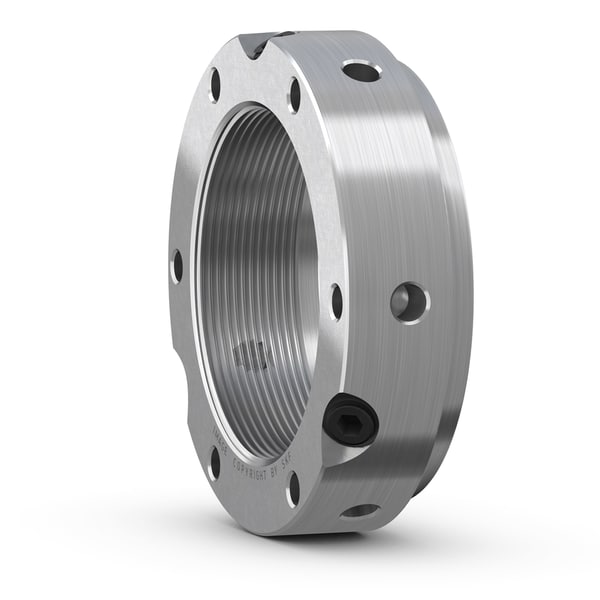

SKF KMTA 14
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 70x1.5
Thread
d1
86.0 mm
Outside diameter locating side face
B
26.0 mm
Width
d3
95.0 mm
Outside diameter
d4
72.0 mm
Inner diameter locating side face
J1
85.0 mm
Pitch diameter for pin-type face spanner
J2
14.0 mm
Distance between holes for pin-wrench and locating side face
N1
5.3 mm
Diameter holes for pin-type face spanner
N2
8.0 mm
Diameter holes for pin-wrench
mass
0.58 kg
Product net weight
