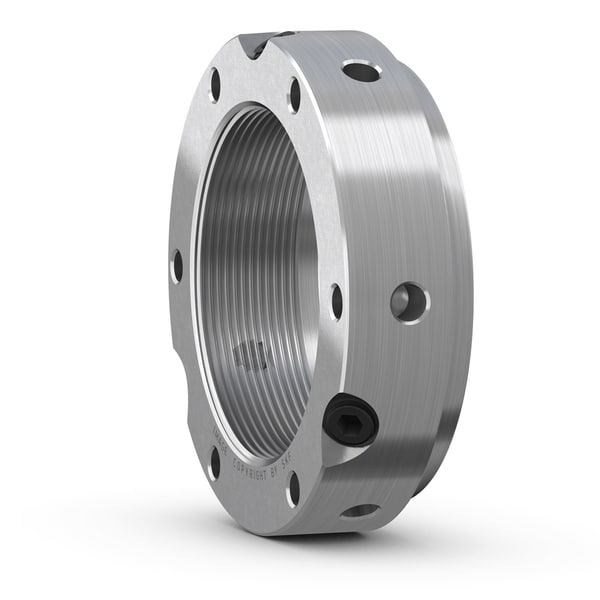

SKF KMTA 26
Precision lock nut with locking pins
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
M 130x3
Thread
d1
156.0 mm
Outside diameter locating side face
B
32.0 mm
Width
d3
165.0 mm
Outside diameter
d4
132.0 mm
Inner diameter locating side face
J1
153.0 mm
Pitch diameter for pin-type face spanner
J2
17.0 mm
Distance between holes for pin-wrench and locating side face
N1
6.4 mm
Diameter holes for pin-type face spanner
N2
8.0 mm
Diameter holes for pin-wrench
mass
1.89 kg
Product net weight
