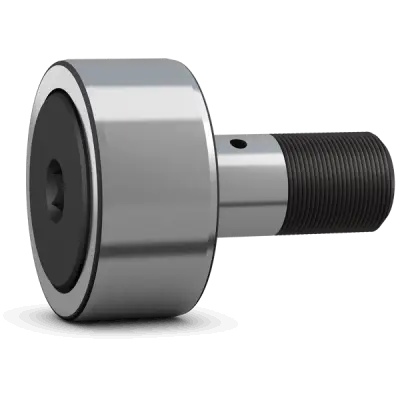

SKF KR 62 PPX
Cam follower (stud-type track roller) with integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
62.0 mm
Outside diameter
d
24.0 mm
Attachment diameter
B
80.1 mm
Total length
C
29.0 mm
Width outer ring
B1
49.5 mm
Length shank on stud
B2
11.0 mm
Distance lubrication hole to flange ring
C1
0.8 mm
Distance face outer ring to face side washer
d1
41.5 mm
Outside diameter flange ring
G
M24x1.5
Thread stud
G1
25.0 mm
Length thread
M
6.0 mm
Seat diameter for lubrication accessories
M1
4.0 mm
Diameter of lubrication hole (shank)
SW
14.0 mm
Width across flats
r1,2
1.0 mm
Chamfer dimension
mass
0.884 kg
Product net weight
