SKF KRV 26

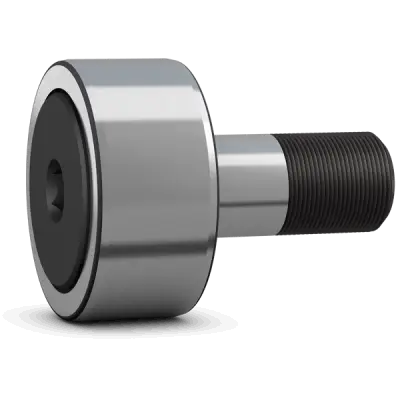

Cam follower (stud-type track roller) with relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
26.0 mm
Outside diameter
d
10.0 mm
Attachment diameter
B
36.2 mm
Total length
C
12.0 mm
Width outer ring
B1
23.0 mm
Length shank on stud
C1
0.6 mm
Distance face outer ring to face side washer
d1
17.1 mm
Outside diameter flange ring
G
M10x1
Thread stud
G1
12.0 mm
Length thread
M
3.0 mm
Seat diameter for lubrication accessories
SW
5.0 mm
Width across flats
mass
0.061 kg
Product net weight
