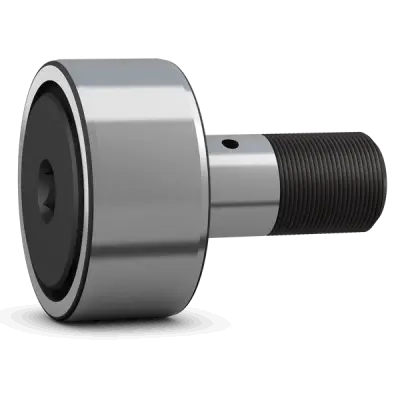

SKF KRV 32 PPX
Cam follower (stud-type track roller) with integral sealing and relubrication feature
Dimensions
SKF KRV 32 PPX Cam Follower Introduction
The KRV 32 PPX is an SKF cam follower in the stud-type track rollers product series. The product is described as a cam follower with integral sealing and a relubrication feature.
What type of bearing is the KRV 32 PPX?
It is classified within cam followers, also identified as stud-type track rollers, under the SKF bearing range.
KRV 32 PPX Dimensions and Stud Details
- Outside diameter D: 32.0 mm
- Attachment diameter d: 12.0 mm
- Total length B: 40.2 mm
- Outer ring width C: 14.0 mm
- Shank length on stud B1: 25.0 mm
- Distance lubrication hole to flange ring B2: 6.0 mm
- Distance face outer ring to face side washer C1: 0.6 mm
- Flange ring outside diameter d1: 22.4 mm
- Stud thread G: M12x1.5
- Thread length G1: 13.0 mm
- Seat diameter for lubrication accessories M: 4.0 mm
- Lubrication hole diameter in shank M1: 3.0 mm
- Width across flats SW: 6.0 mm
- Chamfer dimension r1,2: 0.6 mm
What are the main dimensional identifiers?
The supplied data identifies a 32.0 mm outside diameter, 12.0 mm attachment diameter, 40.2 mm total length, and an M12x1.5 stud thread.
KRV 32 PPX Specifications and Features
The listed mass for the KRV 32 PPX is 0.1 kg. The product data also lists a value of 9.13 kN and a rotational speed value of 3200.0 r/min. Integral sealing and a relubrication feature are included in the product description.
Which features and listed values should be reviewed?
Review the sealed design, relubrication feature, 0.1 kg mass, 9.13 kN listed value, and 3200.0 r/min listed speed value against the intended bearing requirement using the full supplied product data.
