SKF LR 30X35X16.5

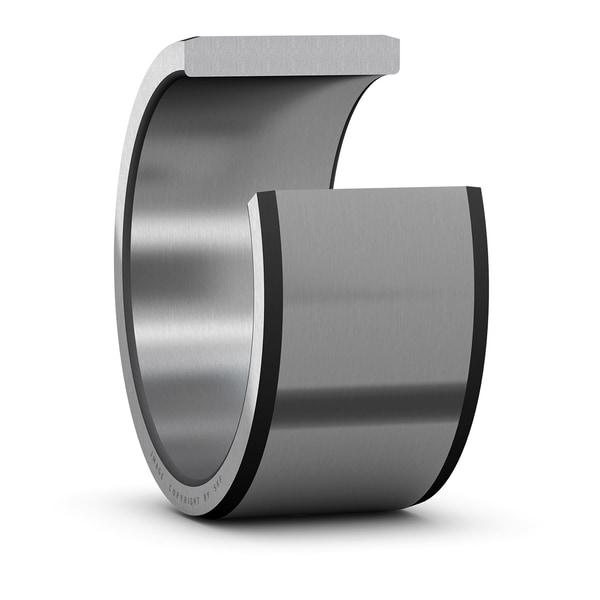

Inner ring for needle roller bearings, LR series
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
F
35.0 mm
Raceway diameter
B
16.5 mm
Width
r, r1,2
0.3 mm
Chamfer dimension inner ring
mass
0.031 kg
Product net weight
SKF LR 30X35X16.5 Inner Ring Overview
What is the LR 30X35X16.5?
The SKF LR 30X35X16.5 is an inner ring in the SKF Inner rings product series, designed for use with needle roller bearings in the LR series. It belongs to the bearing components category within the SKF bearing range.
LR 30X35X16.5 Dimensions and Specifications
What dimensions apply to this inner ring?
The supplied product data lists the following specifications for the LR 30X35X16.5 inner ring:
- Bore diameter (d): 30.0 mm
- Raceway diameter (F): 35.0 mm
- Width (B): 16.5 mm
- Chamfer dimension (r, r1,2): 0.3 mm
- Product net weight: 0.031 kg
Inner Ring Product Identification
How is the LR 30X35X16.5 identified?
This component is identified by the model designation LR 30X35X16.5 and the brand name SKF. It is classified under Bearings > Bearing components > Inner rings, with the stated product title: Inner ring for needle roller bearings, LR series.
