SKF LR 50X55X20.5
Inner ring for needle roller bearings, LR series
Dimensions

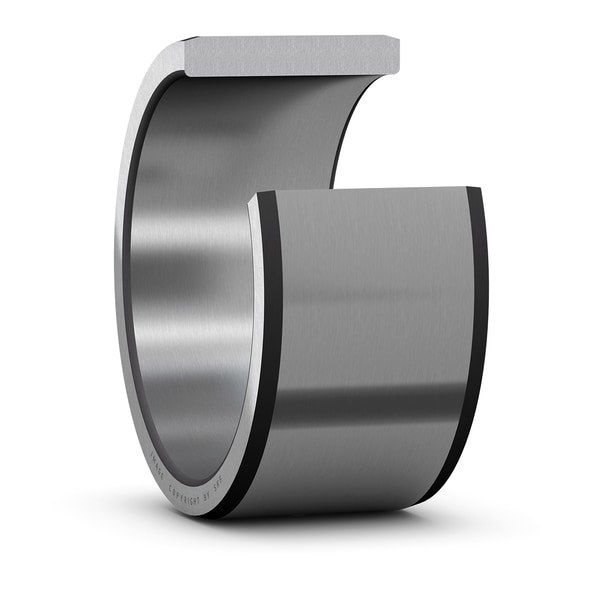

SKF LR 50X55X20.5 Inner Ring
The SKF LR 50X55X20.5 is an inner ring in the SKF Inner rings product series. It is described as an LR-series inner ring for needle roller bearings.
What type of bearing component is the LR 50X55X20.5?
The supplied data identifies it as an inner ring for needle roller bearings, within the SKF Inner rings series.
Listed Dimensions and Weight
- Bore diameter (d): 50.0 mm
- Raceway diameter (F): 55.0 mm
- Width (B): 20.5 mm
- Chamfer dimension (r, r1,2): 0.6 mm
- Product net weight: 0.064 kg
What dimensions are provided for the LR 50X55X20.5?
The product data lists a 50.0 mm bore diameter, 55.0 mm raceway diameter, 20.5 mm width, and 0.6 mm chamfer dimension.
Product Identification and Category
The component is categorized under Brand > SKF > Bearings > Bearing components > Inner rings. The model designation, brand, series, and stated dimensions can be used to identify the part against existing equipment or bearing-component requirements.
How can the supplied information help identify this inner ring?
Use the model LR 50X55X20.5, the SKF brand, the Inner rings series, and the listed dimensions to compare it with the required bearing component. Compatibility should be confirmed using the relevant equipment specification.
