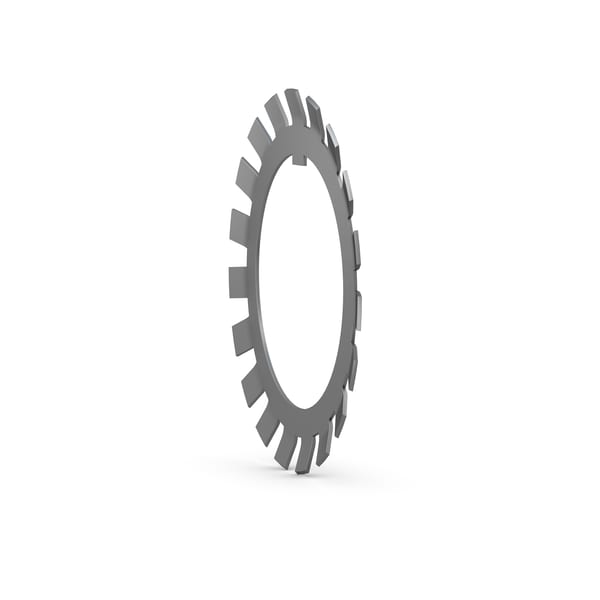

SKF MBL 26
Lock washer for metric lock nuts
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
d1
145.0 mm
Side face diameter
d2
161.0 mm
Outside diameter
B
2.0 mm
Thickness material
f
14.0 mm
Width inner tab
M
125.0 mm
Inside dimension under inner tab
mass
0.077 kg
Product net weight
