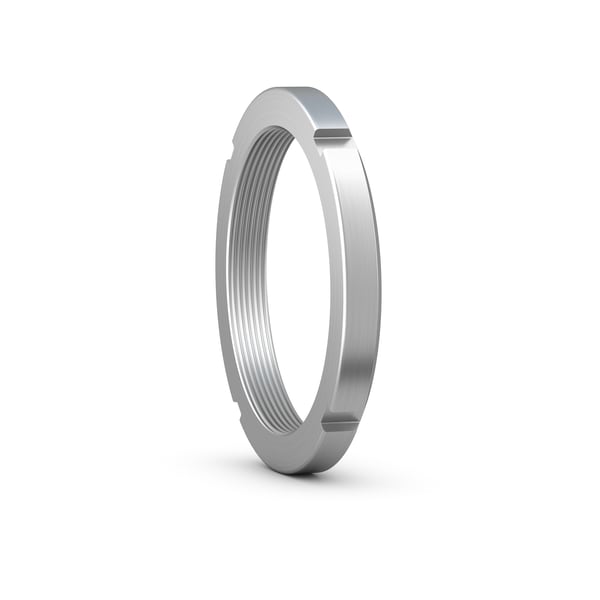

SKF N 02
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
14.884 mm
Thread diameter
d1
20.65 mm
Diameter locating side face
d3
25.527 mm
Outside diameter
B
8.204 mm
Width
b
3.048 mm
Width locating slot
h
2.642 mm
Depth locating slot
mass
0.0178 kg
Product net weight
