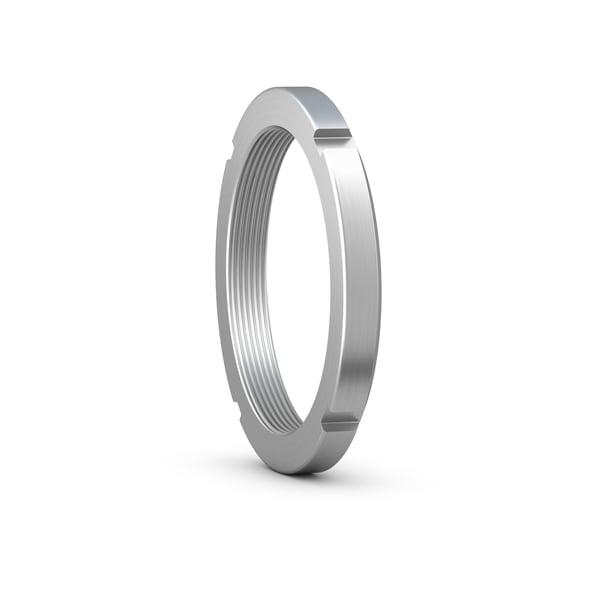

SKF N 024
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
119.786 mm
Thread diameter
d1
134.95 mm
Diameter locating side face
d3
144.602 mm
Outside diameter
B
20.904 mm
Width
b
12.319 mm
Width locating slot
h
5.029 mm
Depth locating slot
mass
0.71 kg
Product net weight
