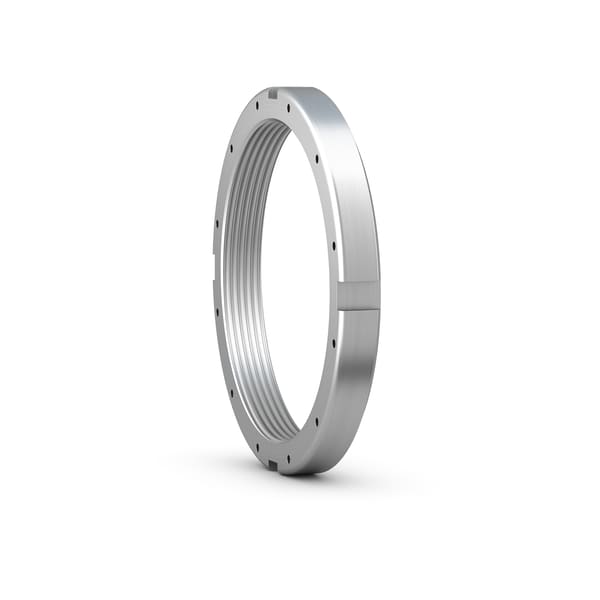

SKF N 060
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
299.339 mm
Thread diameter
d1
335.763 mm
Diameter locating side face
d2
332.994 mm
Pitch diameter threaded holes for locking clip
d3
360.502 mm
Outside diameter
B
39.954 mm
Width
B5
49.479 mm
Width including locking plate
b
24.892 mm
Width locating slot
h
12.954 mm
Depth locating slot
mass
9.16 kg
Product net weight
