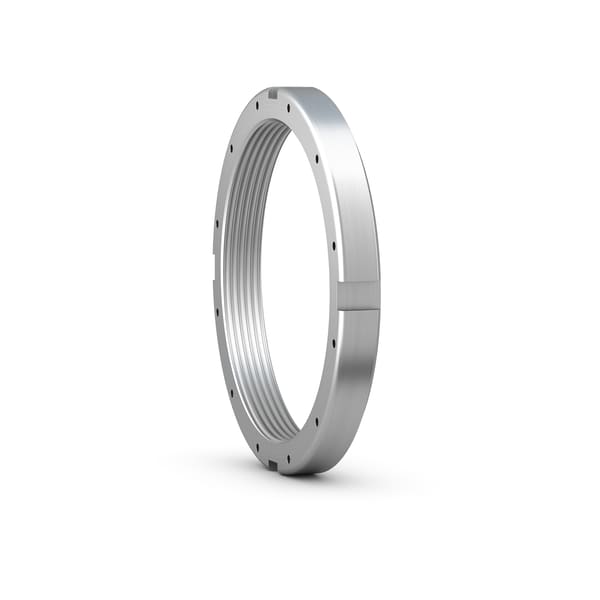

SKF N 064
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
319.075 mm
Thread diameter
d1
356.387 mm
Diameter locating side face
d2
352.044 mm
Pitch diameter threaded holes for locking clip
d3
381.127 mm
Outside diameter
B
42.316 mm
Width
B5
51.841 mm
Width including locking plate
b
24.892 mm
Width locating slot
h
12.954 mm
Depth locating slot
mass
10.5 kg
Product net weight
