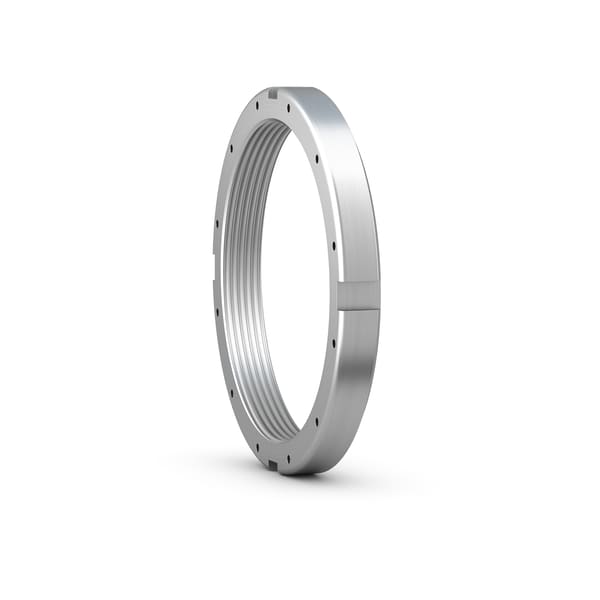

SKF N 076
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
379.908 mm
Thread diameter
d1
422.275 mm
Diameter locating side face
d2
418.719 mm
Pitch diameter threaded holes for locking clip
d3
450.977 mm
Outside diameter
B
48.666 mm
Width
B5
59.766 mm
Width including locking plate
b
31.242 mm
Width locating slot
h
15.342 mm
Depth locating slot
mass
15.7 kg
Product net weight
