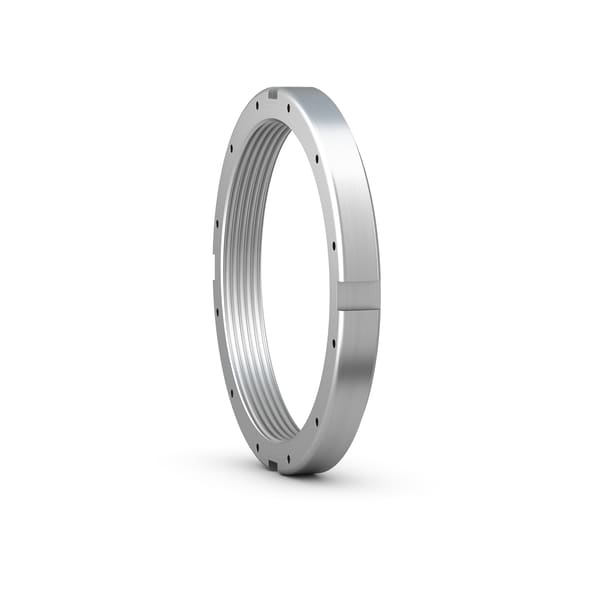

SKF N 080
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
399.923 mm
Thread diameter
d1
444.068 mm
Diameter locating side face
d2
437.769 mm
Pitch diameter threaded holes for locking clip
d3
470.027 mm
Outside diameter
B
52.654 mm
Width
B5
63.5 mm
Width including locking plate
b
31.242 mm
Width locating slot
h
15.342 mm
Depth locating slot
mass
18.2 kg
Product net weight
