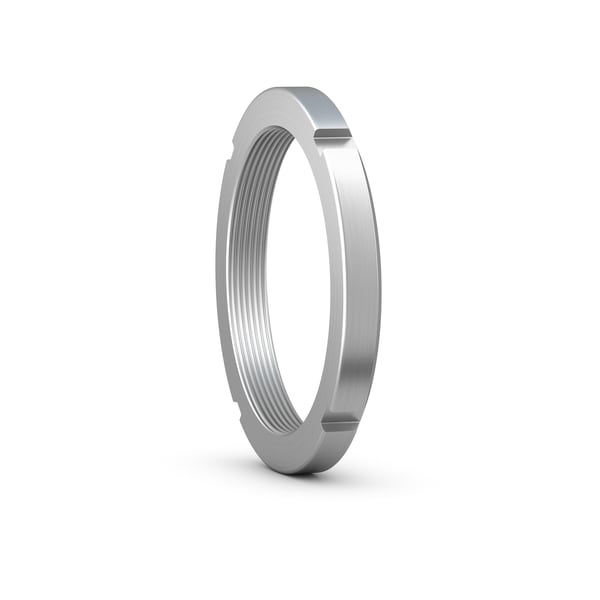

SKF N 09

Lock nuts and locking devices

Lock nut with inch thread, for locking by lock washer or locking plate

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

N 09

Lock nuts and locking devices

Dimensions

G 44.882 mm Thread diameter

d₁ 57.937 mm Diameter locating side face

d₃ 64.414 mm Outside diameter

B 11.379 mm Width

b 6.096 mm Width locating slot

h 2.642 mm Depth locating slot

mass 0.132 kg Product net weight
