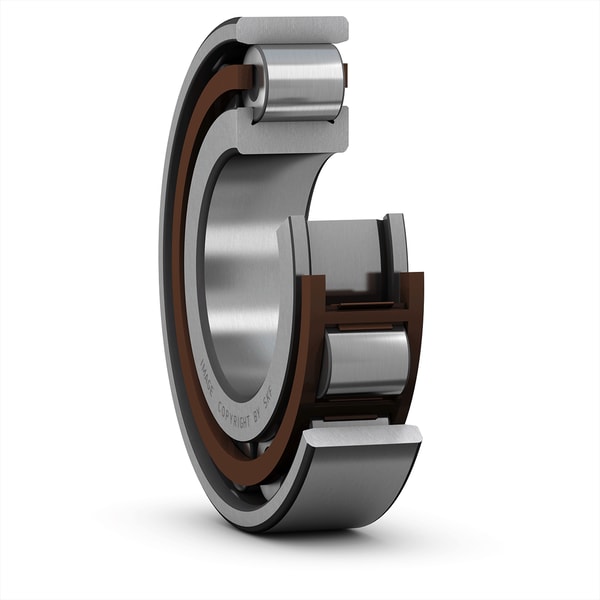

SKF N 209 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
85.0 mm
Outside diameter
B
19.0 mm
Width
d1
59.0 mm
Shoulder diameter of inner ring
E
76.5 mm
Raceway diameter of outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.2 mm
Permissible axial displacement
mass
0.418 kg
Product net weight
