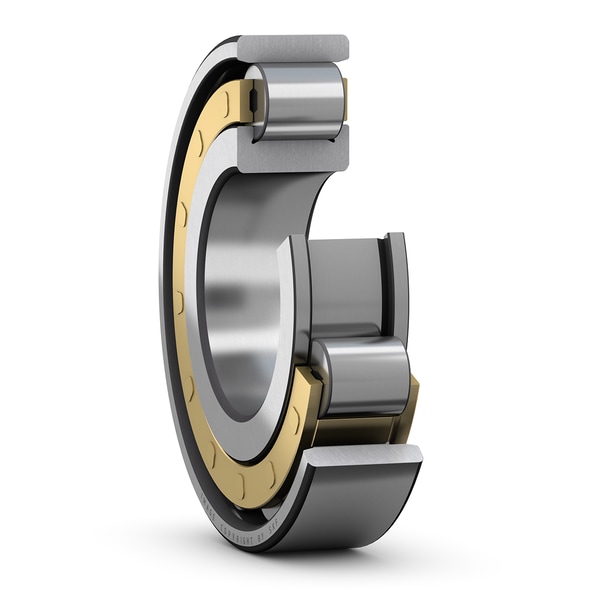

SKF N 217 ECM
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
28.0 mm
Width
d1
107.0 mm
Shoulder diameter of inner ring
E
136.5 mm
Raceway diameter of outer ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
s
1.5 mm
Permissible axial displacement
mass
2.18 kg
Product net weight
