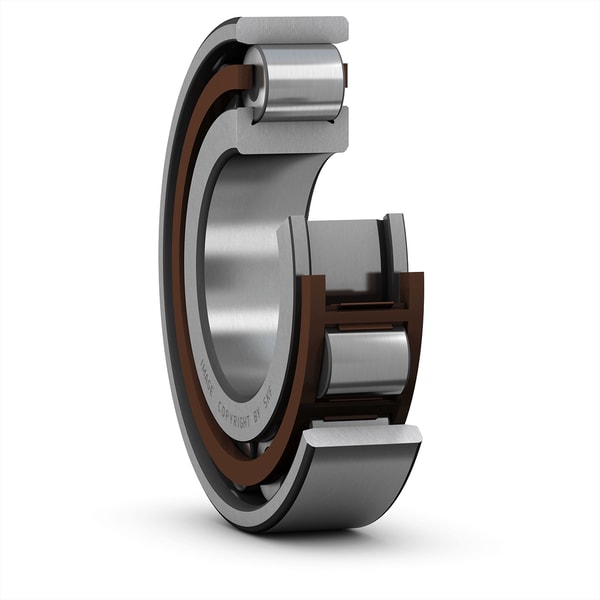

SKF N 220 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
100.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
34.0 mm
Width
d1
127.0 mm
Shoulder diameter of inner ring
E
163.0 mm
Raceway diameter of outer ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
1.7 mm
Permissible axial displacement
mass
3.44 kg
Product net weight
