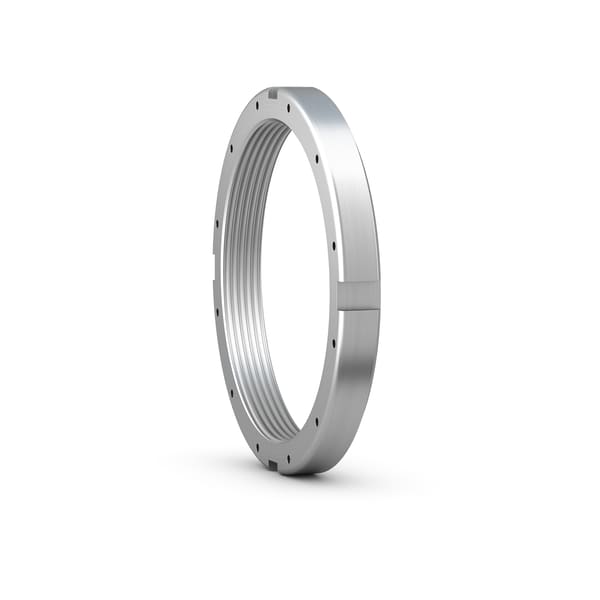

SKF N 500
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
499.923 mm
Thread diameter
d1
550.875 mm
Diameter locating side face
d2
548.894 mm
Pitch diameter threaded holes for locking clip
d3
579.577 mm
Outside diameter
B
68.656 mm
Width
B5
82.55 mm
Width including locking plate
b
37.592 mm
Width locating slot
h
15.342 mm
Depth locating slot
mass
37.0 kg
Product net weight
