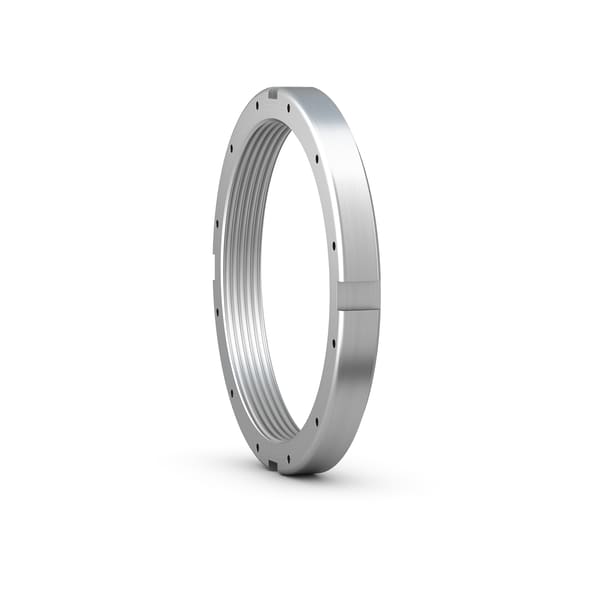

SKF N 900
Lock nut with inch thread, for locking by lock washer or locking plate
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
900.201 mm
Thread diameter
d1
974.725 mm
Diameter locating side face
d2
980.694 mm
Pitch diameter threaded holes for locking clip
d3
1030.427 mm
Outside diameter
B
100.406 mm
Width
B5
117.45 mm
Width including locking plate
b
62.992 mm
Width locating slot
h
25.654 mm
Depth locating slot
mass
155.0 kg
Product net weight
