SKF NA 6914

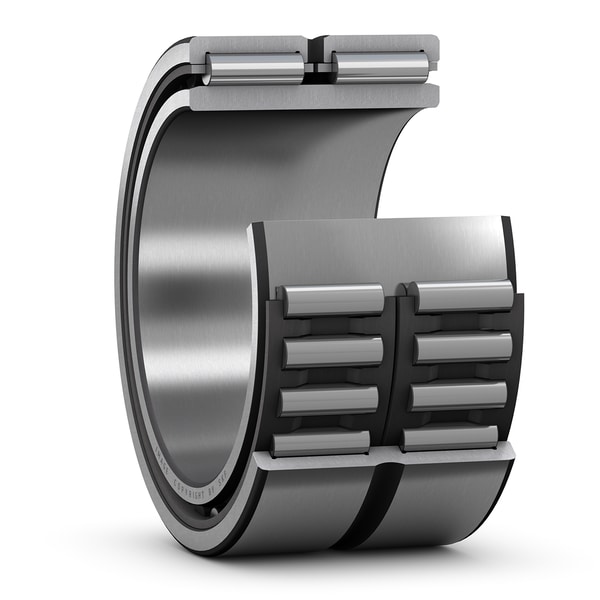

Double row needle roller bearing with machined rings, with flanges and an inner ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
54.0 mm
Width
F
80.0 mm
Raceway diameter inner ring
r1,2
1.0 mm
Chamfer dimension outer ring
s
1.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
1.39 kg
Product net weight
