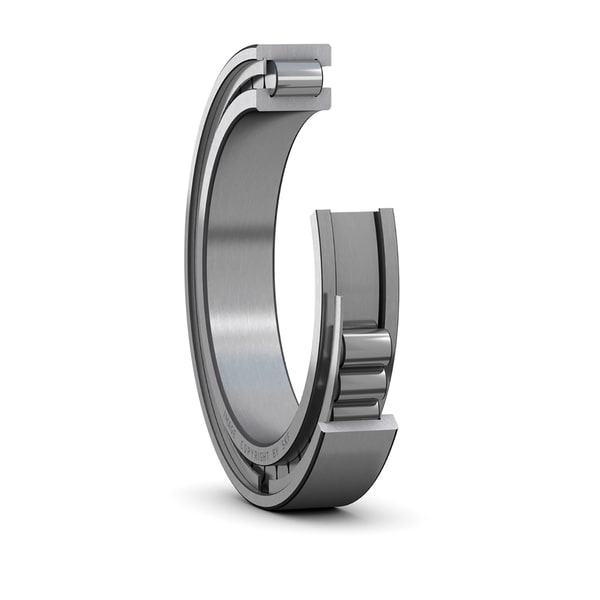

SKF NCF 28/950 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
950.0 mm
Bore diameter
D
1150.0 mm
Outside diameter
B
118.0 mm
Width
d1
1021.0 mm
Shoulder diameter inner ring
D1
1087.0 mm
Shoulder diameter outer ring
E
1103.0 mm
Raceway diameter outer ring
s
12.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
5.0 mm
Chamfer dimension
