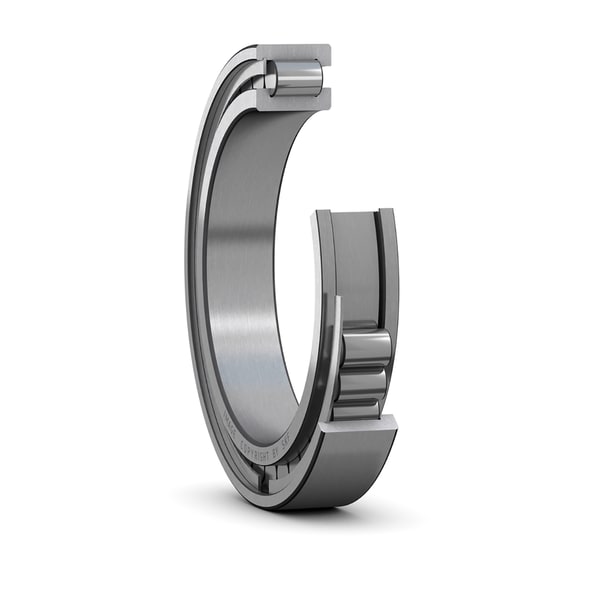

SKF NCF 3084 CV
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
420.0 mm
Bore diameter
D
620.0 mm
Outside diameter
B
150.0 mm
Width
d1
480.0 mm
Shoulder diameter inner ring
D1
559.0 mm
Shoulder diameter outer ring
E
577.6 mm
Raceway diameter outer ring
s
15.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
5.0 mm
Chamfer dimension
mass
150.0 kg
Product net weight
