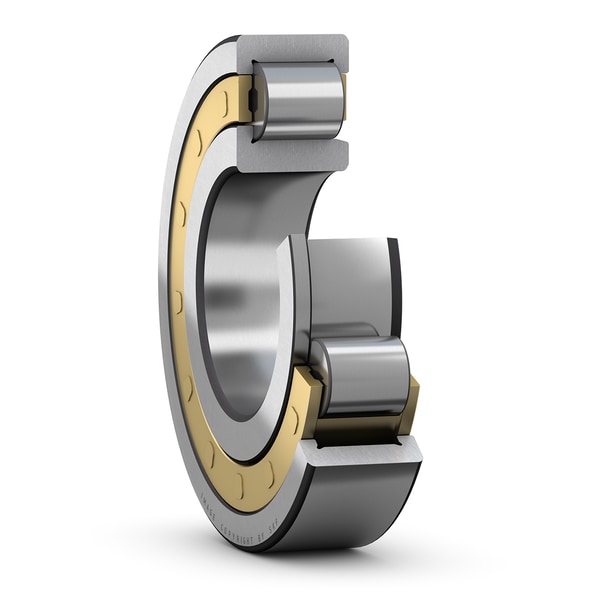

SKF NJ 1060 MA
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
300.0 mm
Bore diameter
D
460.0 mm
Outside diameter
B
74.0 mm
Width
d1
356.0 mm
Shoulder diameter of inner ring
D1
402.0 mm
Shoulder diameter of outer ring
F
340.0 mm
Raceway diameter of inner ring
r1,2
4.0 mm
Chamfer dimension
s
4.0 mm
Permissible axial displacement
mass
43.2 kg
Product net weight
