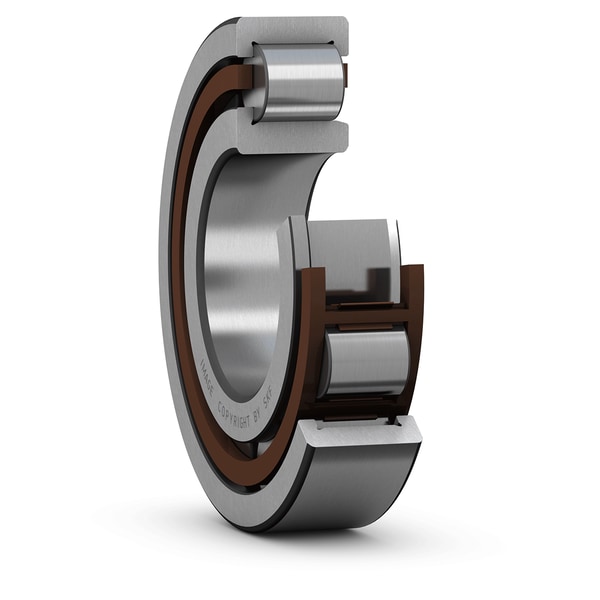

SKF NJ 211 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
21.0 mm
Width
d1
70.8 mm
Shoulder diameter of inner ring
D1
85.68 mm
Shoulder diameter of outer ring
F
66.0 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.0 mm
Permissible axial displacement
mass
0.667 kg
Product net weight
