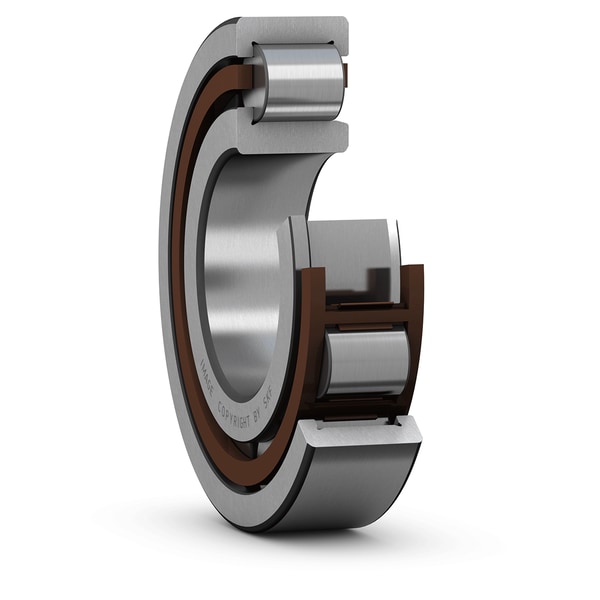

SKF NJ 2213 ECP
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
65.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
31.0 mm
Width
d1
84.4 mm
Shoulder diameter of inner ring
D1
103.2 mm
Shoulder diameter of outer ring
F
78.5 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
s
1.9 mm
Permissible axial displacement
mass
1.44 kg
Product net weight
