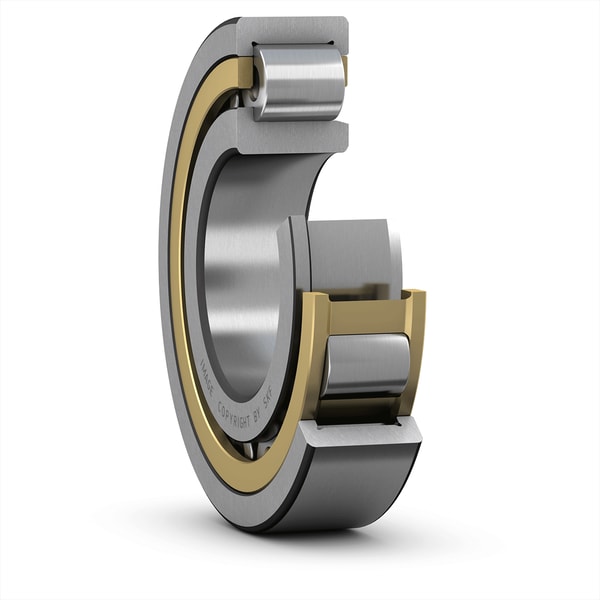

SKF NJ 2309 ECML
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
36.0 mm
Width
d1
64.4 mm
Shoulder diameter of inner ring
D1
83.75 mm
Shoulder diameter of outer ring
F
58.5 mm
Raceway diameter of inner ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
s
3.2 mm
Permissible axial displacement
mass
1.49 kg
Product net weight
