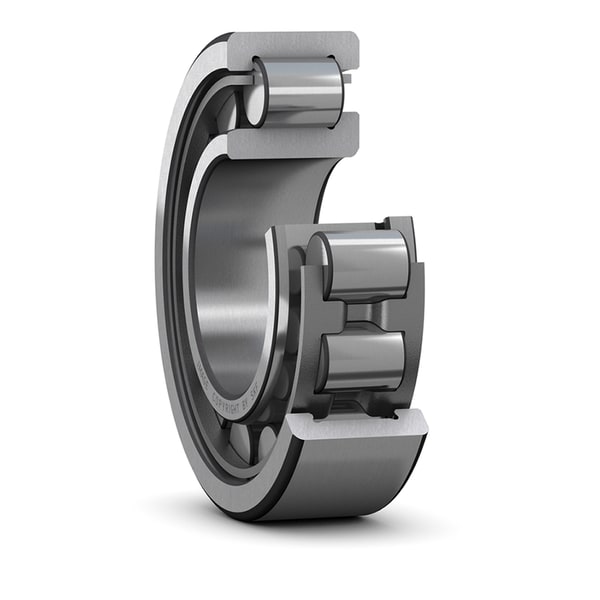

SKF NJ 324 ECJ
Single row cylindrical roller bearing, NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
260.0 mm
Outside diameter
B
55.0 mm
Width
d1
168.0 mm
Shoulder diameter of inner ring
D1
217.65 mm
Shoulder diameter of outer ring
F
154.0 mm
Raceway diameter of inner ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
3.7 mm
Permissible axial displacement
mass
13.3 kg
Product net weight
