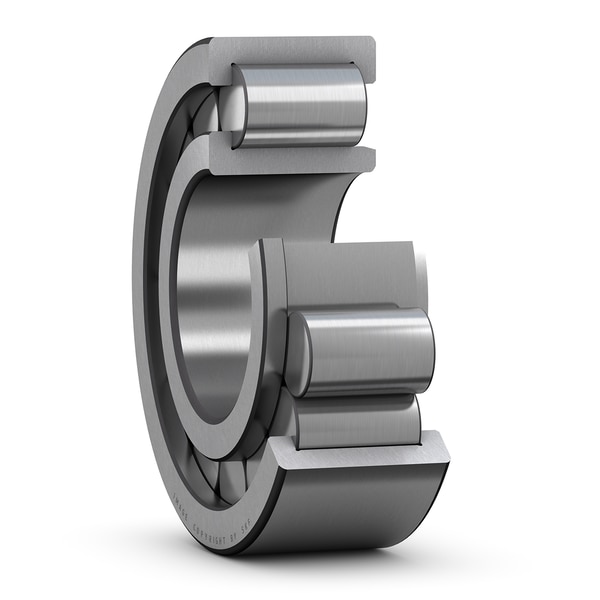

SKF NJG 2340 VH
Single row full complement cylindrical roller bearing, NJG design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
420.0 mm
Outside diameter
B
138.0 mm
Width
d1
266.0 mm
Shoulder diameter inner ring
D1
342.0 mm
Shoulder diameter outer ring
F
238.65 mm
Raceway diameter inner ring
s
9.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
5.0 mm
Chamfer dimension
