SKF NKI 32/30

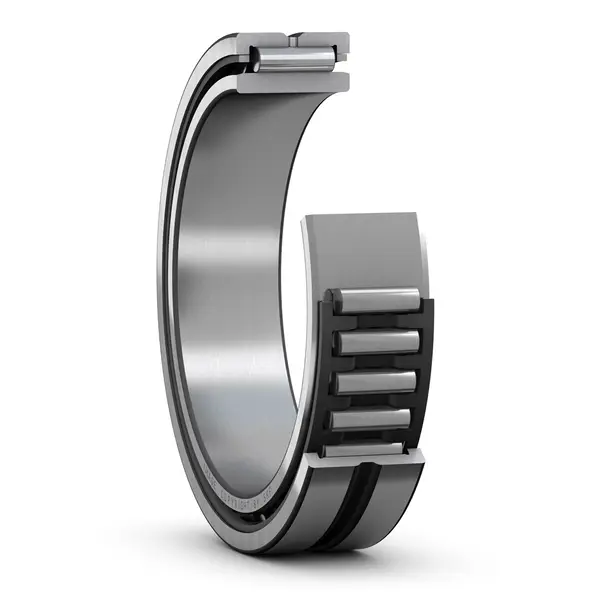

Single row needle roller bearing with machined rings, with flanges
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
32.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
30.0 mm
Width
F
37.0 mm
Raceway diameter inner ring
r1,2
0.3 mm
Chamfer dimension outer ring
s
1.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
0.18 kg
Product net weight
