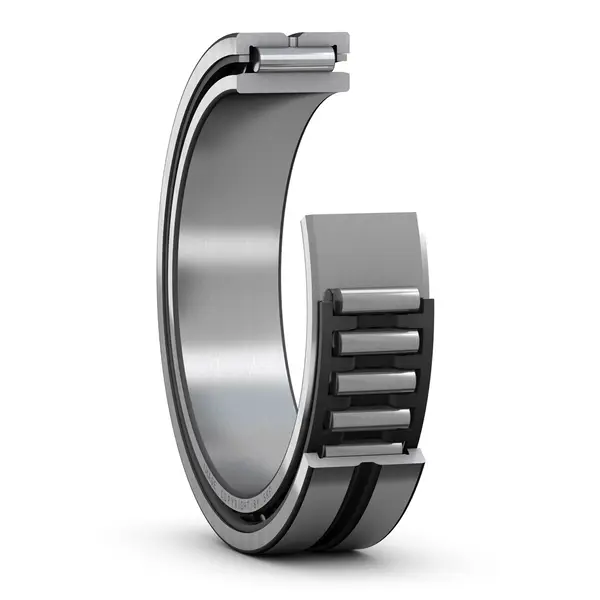

SKF NKI 90/26
Single row needle roller bearing with machined rings, with flanges
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
26.0 mm
Width
F
100.0 mm
Raceway diameter inner ring
r1,2
1.0 mm
Chamfer dimension outer ring
s
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
0.778 kg
Product net weight
