SKF NKXR 15

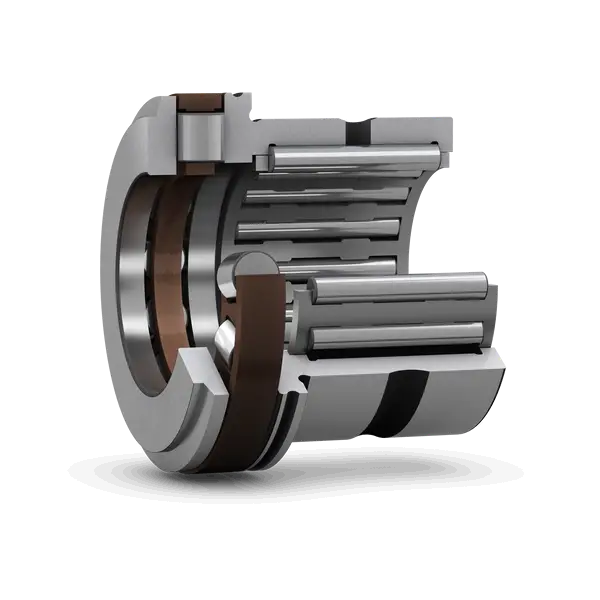

Combined needle roller / cylindrical roller thrust bearing
Dimensions
SKF NKXR 15 Combined Needle Roller Bearing
The SKF NKXR 15 is part of the combined needle roller product series and is identified as a combined needle roller / cylindrical roller thrust bearing within the supplied SKF bearing range.
What type of bearing is the NKXR 15?
The NKXR 15 is listed as a combined needle roller / cylindrical roller thrust bearing, placing it in SKF's combined needle roller bearing category.
NKXR 15 Dimensions and Weight
- Fw: 15.0 mm
- Diameter under rollers D: 24.0 mm
- Outside diameter C: 23.0 mm
- Width C1: 9.0 mm
- Width of thrust part C1: 6.5 mm
- Distance side face to lubrication hole d: 15.0 mm
- Bore diameter of thrust part D1: 28.1 mm
- Diameter of flange r1,2 / chamfer dimension: 0.3 mm
- Product net weight: 0.0417 kg
What are the stated dimensions for the NKXR 15?
The supplied data lists a 15.0 mm Fw dimension, 24.0 mm diameter under rollers, 23.0 mm outside diameter, 9.0 mm width C1, 6.5 mm thrust-part width, and additional related dimensions as shown above.
SKF NKXR 15 Product Details
The product is classified under Brand > SKF > Bearings > Combined bearings > Combined needle roller. The supplied product data also lists a speed value of 8500.0 r/min.
What speed value is included in the supplied data?
The NKXR 15 product data includes 8500.0 r/min. No additional performance, certification, stock, application, or guarantee details are provided in the available product information.
